Features
-Data logging with a CF card
A personal computer is not required for data
logging.
Measured data can be recorded easily using the CF card
provided.

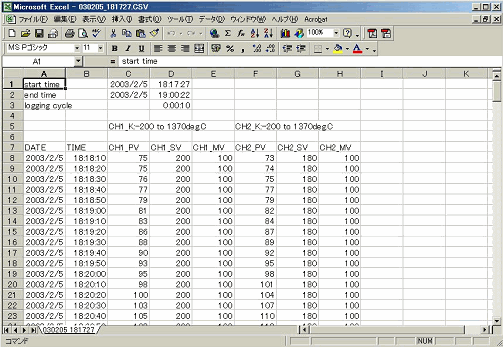

Data recorded on a CF card can be formatted for use in
spreadsheet applications.
Logging data can be edited on the
commercially available spreadsheet applications.

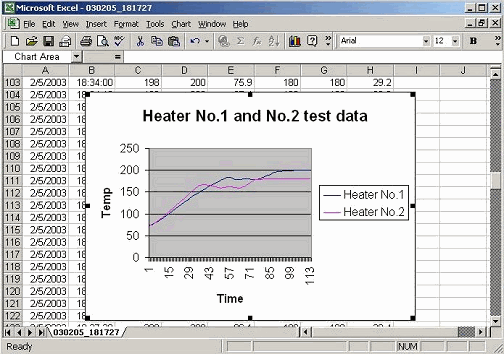

Graph using the graph wizard
-2-ch
independent control, 2-ch independent display
2-ch
independent controls can be used in such cases when input types are
different
or when control targets are
different (e.g. temperature and humidity).
2-ch independent displays
ensure easy checking of control status.
-Standard 2-point alarm output
2 alarm points
per one channel are a standard feature.
Alarm type is selectable by keypad
operation.
Specifications
| Input |
: |
Thermocouple, RTD, DC current, DC voltage |
| Accuracy |
: |
Within +/-0.3%
of each input span +/-1
digit |
| Sampling period |
: |
0.25 seconds |
| Control action |
: |
Auto-tuning PID, PI, PD, P, ON/OFF |
| Control output |
: |
Relay contact, Non-contact, DC current |
| External memory device |
: |
CF card (Type 1) |
|
|
Maximum capacity: 256MB [(CF card by Renesas (Hitachi)
Technology] |
| External operation input |
: |
Logging Start/Stop, Front keypad operation Lock/Unlock |
| Supply voltage |
: |
100 to 240V AC 50/60Hz |
| Option |
: |
Dust-proof/Drip-proof (IP66), Terminal
cover |

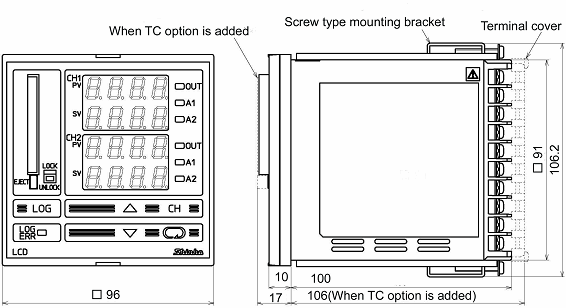

External dimensions (Unit:
mm)

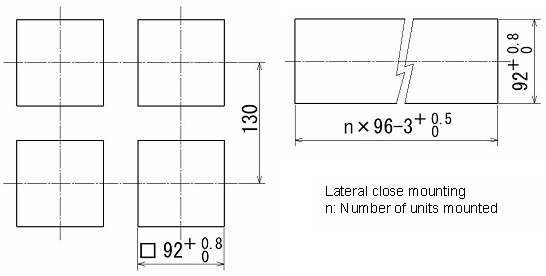

Panel cutout (Unit: mm)
|
