| Digital
indicators |

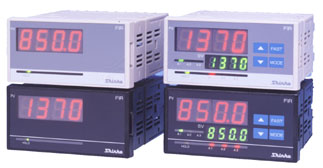

| FIR-101-M |
| FIR-201-M |
| Multi-input of thermocouple (10 types), RTD (2 types) |
 |
| DC current (2 types) and DC voltage (1 type) |
| Sampling period is 0.125 seconds. |
| Alarm type for the function can be selected by key |
| operation or by an internal switch. |
| Safety standards based on UL/CSA and CE requirements |
|
|
| Input |
: |
Thermocouple, RTD, DC current and DC voltage |
| Accuracy |
: |
Within ±0.2%FS ±1digit |
| Sampling period |
: |
0.125 seconds |
| Alarm action |
: |
Process high alarm, Process low alarm, Process high alarm with
standby |
|
|
Process low alarm with standby |
| Supply voltage |
: |
100 to 240V AC 50/60Hz, 24V AC/DC 50/60Hz |
| Option |
: |
Alarm 2, Alarm 3, Transmission output, Serial communication, etc.
|
| Digital
indicators |
| JIR-301-M |
| Multi-input of thermocouple (10 types), RTD (2 types) |
|
 |
| DC current (2 types) and DC voltage (4 types) |
| Input value is outputted in 4 to 20mA for 0.25 seconds |
| after being converted into analog volume. Transmission output and
|
| 3 outputs for alarm function are equipped as standard
function. |
| IP66 structure allows usage in harsh environments when the
indicator |
| is exposed to water or dust. |
|
| Input |
: |
Thermocouple, RTD, DC current and DC voltage |
| Accuracy |
: |
Within ±0.2% FS±1digit |
| Sampling peirod |
: |
0.25 seconds |
| Alarm action |
: |
Process high alarm, Process low alarm, Process high alarm with
standby |
|
|
Process low alarm with standby |
| Supply voltage |
: |
100 to 240V AC 50/60Hz, 24V AC/DC 50/60Hz |
| Option |
: |
Specified transmission output, Serial communication (RS-485),
etc. |
|
|
