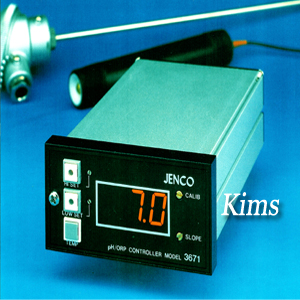

■ 설치형 pH/ORP 측정 메타 (Model: 3671)
(pH/ORP
controller)
▶ 1/8 DIN panel mount pH/ORP controller with dual SPDT Hi/Lo
relays, manual set points and calibration are via potentiometers.
▶ Features
a voltage/recorder output and an internal pH/ORP select switch.
▶ Display is
a large bright red LED.
▶ Connectors are a BNC input and spade lug screw
type connector block.
▶ Meter requires a Pt-100 ATC or a simulation resistor
for temperature.
▶ Power115/230A AC.
◈ Features
▶ All Solid State
Design
▶ Low Cost
▶ Easy To Install
▶ Set Points On Front Panel
▶ Recorder Output
▶ 0.56 High Efficiency Red LED Display
▶ 1/8 DIN
Aluminum Case
▶ Set Points Cover Entire Span
▶ ATC For pH 0 To 100 °C
▶ Internal pH/Orp Select Switch
▶ Low Power Consumption Design, Reduced
▶ Internal Heating Thus Increased Reliability
|
