탁상형 pH/ORP 메타
(BenchTop pH/ORP Meter)

3601



JENCO (미국)



pH/ORP controller with dual SPDT Hi/Lo relays

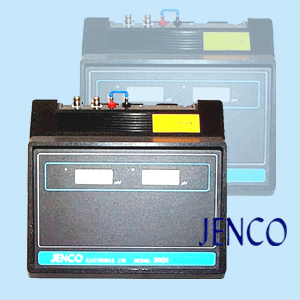

■ 탁상형 pH/ORP 메타 (Model: 3601)
    (BenchTop pH/ORP Meter)

♣ pH/ORP controller with dual SPDT Hi/Lo relays, manual set points via potentiometers and calibration via potentiometers with a voltage/recorder output and has an internal pH/ORP select switch and large bright red LED display uses a BNC input and spade lug screw type connector block requires a Pt-100 ATC or a simulation resistor for temperature.

◈ Features

♣ Dual Function pH & Orp
♣ Dual LCD Displays
♣ Dual 115V AC Power On/Off Relays
♣ Dual Standard AC Electrical Sockets
♣ Auto Temperature Compensation
♣ Water & Corrosion Proof Case
♣ Calibration & Set Points Set Via Screw Type Potentiometers

◈ Primary Specs

Range / Resolution / Accuracy
♣ pH ; 0.00~14.00 pH / 0.01 pH / 0.02% ± 1 LSD
♣ ORP; -1999~1999 mV / 1 mV / 0.05% ± 1 LSD

◈ Analog Output

♣ Relays Output Control Range ; Over span of 0.00~14.00pH &±1999mV
♣ Relay hysteresis pH/ORP ; ± 0.1pH/±10 mV
