탁상형 전도도/TDS 메타 (BenchTop Cond,TDS Meter)

	3173 / 3173R

	JENCO (미국)

	Conductivity/TDS/Temperature benchtop meter

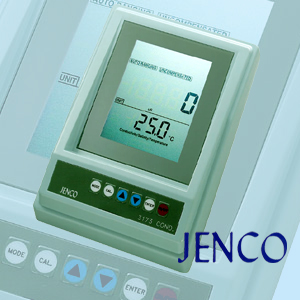

■ 탁상형 전도도/TDS 메타 (Model: 3173 / 3173R)
(BenchTop Cond,TDS Meter)

◈ Conductivity/TDS/Temperature benchtop meter, with an extra large LCD display, adjustable cell constants K=0.1, 1.0, 10.0, programmable temperature co-efficient and reference temperature. ◈ Battery or 115/230 AC powered.
◈ CE approved.

◎ Features
◈ Clear, Large LCD Display (4 1/8 X 3 1/16 In.).
◈ Displays Conductivity And Temperature, Or Tds And Temperature Readings At The Same Time.
◈ ACcepts 2-Wire Conductivity Cells With
Adjustable K=0.1, K=1 And K=10 Cell Constants
◈ For Improved Flexibility And Accuracy.
Auto Or Manual Ranging Of 3 Conductivity
◈ Ranges Are Available For Improved Usability.

◈ Convenient One Point Calibration.
◈ Calibration Data Is Stored In Memory And Is
Ready For Use On Power Up.
◈ Readings Are Automatically Compensated For Temperature (ATC).
◈ Meter Automatically Switches Into Manual
Compensation When Temperature Probe Is Not Present.
◈ Automatic Lock Mode Is Available To Lock In Stable Readings.
◈ Intuitive Operation With Membrane Keypad With Tactile And Audio Feedback.
◈ Splash Resistant Case Is mAde With Durable, Reinforced Plastic For Added Protection.
◈ Protective Covers For Connectors Are Included.

◈ Large LCD Is Offset For Improved Protection Against Unintentional Damage.
◈ Smaller Case Does Not Clutter Valuable Desk Space.
◈ 8 Pin DIN Connector For Conductivity Cell & 10K Thermistor.
◈ AC Adaptor Or Battery Power.

◈ Primary Specs

◎ Range / Resolution / Accuracy
♣ Conductivity, K=0.1 ; 0.00 to 20.00 uS/cm 0.01 uS/cm ± 0.5 % full scale
♣ Conductivity, K=0.1 ; 20.0 to 200.0 uS/cm 0.1 uS/cm ± 0.5 % full scale
♣ Conductivity, K=0.1 ; 200 to 2000 uS/cm 1 uS/cm ± 0.5 % full scale
♣ Conductivity, K=1 ; 0.0 to 200.0 uS/cm 0.1 uS/cm ± 0.5 % full scale
♣ Conductivity, K=1 ; 200 to 2000 uS/cm 1 uS/cm ± 0.5 % full scale
♣ Conductivity, K=1 ; 2.00 to 20.00 mS/cm 0.01 mS/cm ± 0.5 % full scale
♣ Conductivity, K=10 ; 0 to 2000 uS/cm 1 uS/cm ± 0.5 % full scale
♣ Conductivity, K=10 ; 2.00 to 20.00 mS/cm 0.01 mS/cm ± 0.5 % full scale
♣ Conductivity, K=10 ; 20.00 to 200.0 mS/cm 0.1 mS/cm ± 0.5 % full scale
♣ TDS, K=0.1 ; 0.00 to 10.00 ppm / 0.01 ppm / ± 0.5 % full scale
♣ TDS, K=0.1 ; 10.0 to 100.0 ppm / 0.1 ppm / ± 0.5 % full scale
♣ TDS, K=0.1 ; 100 to 1000 ppm / 1 ppm / ± 0.5 % full scale
♣ TDS, K=1 ; 0.0 to 100.0 ppm / 0.1 ppm / ± 0.5 % full scale
♣ TDS, K=1 ; 100 to 1000 ppm / 1 ppm / ± 0.5 % full scale
♣ TDS, K=1 ; 1.00 to 10.00 ppt / 0.01 ppt / ± 0.5 % full scale
♣ TDS, K=10 ; 0 to 1000 ppm / 1 ppm / ± 0.5 % full scale
♣ TDS, K=10 ; 1.00 to 10.00 ppt / 0.01 ppt / ± 0.5 % full scale
♣ TDS, K=10 ; 10.00 to 100.0 ppt / 0.1 ppt / ± 0.5 % full scale
♣ Temp ; - 10.0 to 120.0 °C / 0.1 °C / ± 0.5 °C
