탁상형 pH/mV/Temp 메타
(BenchTop pH/mV/Temp Meter)

6201

JENCO (미국)

pH ; 0 ~ 14.00 pH / 0.01pH / ± 0.1% --ORP ; -2047 ~ 2047 mV / 1 mV / ± 0.05

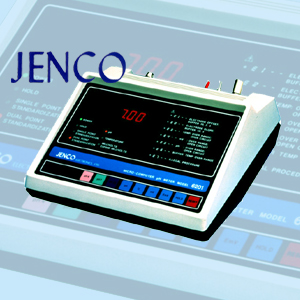

■ 탁상형 pH/mV/Temp 메타 (Model: 6201)
(BenchTop pH/mV/Temp Meter)

♣ pH/mV/Temp. bench meter, microprocessor based with red LED digital display and manual or Pt-100 ATC temperature compensation.
♣ Connectors are a BNC input, reference input pin and banana plug connectors for the ATC .
♣ Meter does not offer direct Ion concentration readout but requires data to be graphed and interpreted.
♣ AC Powered only built in transformer 115/230 volts.

◆ Features

♣ Touch Key Control
♣ Splash Proof Front Panel
♣ Electrode Offset Recognition
♣ Electrode Slope Recognition
♣ NBS Buffer Recognition,4.01,7.00,10.01
♣ Isopotential Point Could Be 7.00 Or 6.86 Specify When Ordering
♣ Stored In Buffer T.C.
♣ Automatic Slope Calculations
♣ Flame Retardant Rugged Plastic Case
♣ 0.1 mV Resolution Over Wide Range For Ion Analysis
♣ Seven Error Indicators
♣ Easy To Use
♣ 50 Hz,60 Hz Rejection
♣ Manual And Automatic Temperature Compensation
♣ 0.56 High Efficiency Red LED
♣ Audio Feedback For Touch Keys And Error Indicators

◆ Primary Specs

Range / Resolution / Accuracy
♣ pH ; 0 ~ 14.00 pH / 0.01pH / ± 0.1%
♣ ORP ; -2047 ~ 2047 mV / 1 mV / ± 0.05
♣ ORP( E ) ; -409.5 ~ 409.5 Emv / 0.1 mV / ± 0.05%
♣ Temp. ; -10 ~ 125 °C / 1 °C / ± 0.5
