탁상형 아날로그 pH 메타
(BenchTop pH Analog Meter)

63



JENCO (미국)



pH Analog benchtop meter with pH 0.00 to 14.00 mirrored analog scale with +/ 0.04 pH readability using the mirrored scale

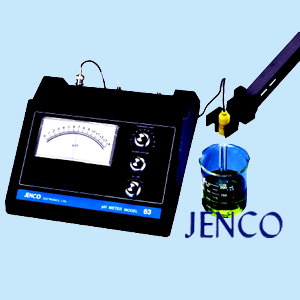

■ 탁상형 아날로그 pH 메타 (Model: 63)
    (BenchTop pH Analog Meter)

◎ pH Analog benchtop meter with pH 0.00 to 14.00 mirrored analog scale with +/ 0.04 pH readability using the mirrored scale.
◎ Temperature compensation is manual. pH calibration is via knobs and input connector is BNC. AC/DC Powered.

◎ Features
♣ Low Cost
♣ Easy To Use
♣ Rugged Design
♣ Slope Adjustment
♣ Mirror Scale/Easy To Read
♣ Ideal For Educational Use
♣ UL/CE Approved AC Line Adaptor
♣ Manual Temperature Compensation

◎ Specifications
Primary Specs
Range / Resolution / Accuracy
♣ pH : 0~14pH / ±0.2pH / ±0.05 pH
(Relative: within 2pH of Calibration Buff

◎ Other
♣ Readability ; ±0.04pH (Mirror Scale)
♣ Temp. compensation ; Manual 0-100 °C
♣ Input Impedance ; 10^12 Ohms
♣ Power Source ; 115/230 V ±15%,50/60 Hz AC adaptor
♣ Weight ; 1 kg
♣ Dimensions (WxLxH) ; 250mm x 240mm x 100mm
