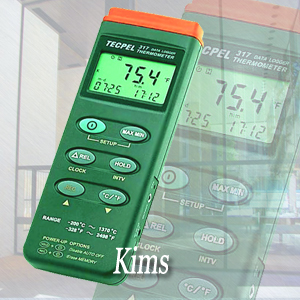

■ 디지털 온도 측정기 (Model：DTM 317)
(Digital Thermometer)

● -200℃ ~ 1370℃ / 0.1℃ / Single Input + Data recorder

◈Features :

● 온도 측정범위: -200℃ ~ 1370℃( -328 ℉ ~ 2498℉ )
● 측정 데이터 저장능력: 16,000 records
● 4 digit LCD, 3단 화면표시
● Timer 표시기능
● 데이터 저장 시간 조정
● 측정값 정지기능 / ℃ or ℉ 선택기능
● Single K-type thermocouple 입력
● MAX. MIN 기능
● Auto power off 기능
● Hold, △REL (최대-최소 차이값)
● Automatic low 전원 화면표시
● 고정밀 화면표시: 0.1℃, 0.1℉
● RS-232 Computer interface
● Software program for Windows 운용

◈ Specifications :

● Measurement Range: -200℃ to 1370℃ (-328℉ to 2498℉)
● Accuracy:
-200℃ to 1370℃: ±(0.5%rdg+1℃) typical
-328℉ to 2498℉: ±(0.5%rdg+1℉) typical
● Temperature Scale: Celsius or Fahrenheit user-selectable
● Resolution: 0.1℃ or 0.1℉ (200℃~1370℃, 1℃)
● Sensor: K-type bead Thermocouple probe
● Sampling rate: 2.5 times/per second
● Input Protection: 60V DC or 24V rms AC Maximum

◈ 일반 규격(General):

● Power requirement: 1 piece 9V battery
● Dimensions: 7.2"x2.5"x1.2" (184x64x30mm)
● Weight: 7.4 oz(210g)
● Accessories: 1 x TPK-01,probe, 9V battery, Deluxe carrying case, owners manual, RS-232 cable    and software program
